7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals

Name: 7282885130 2 Hole Yzki RH Automotive Housing Connector with Terminals
Brand: YBADDVANCE
Price: 1 USD

Buy cheap 7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals product

Brand Name : YBADDVANCE

Model Number : 7282-8851-30

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 7282-8851-30

Martial : PBT/PA66

Color : Black

Gender : male

Way : 2 hole

HS code : 8536909000

Feature : Waterproof

Type : Sealed connector

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals

Description

2 Hole Yzki RH Automotive Housing Connector with Terminals

1 Row, 2 Way

Height : 14.5mm

Width : 17.4 mm

Length : 34.1 mm

Tab Width mm(inches): 0.64(025)

Mating Connector : 7283-8851-30

Series : RH Series Connectors

Allowable Current(Ref.) 6A(10P)

Low Level Contact Resistance 8milli ohm Max.(Initial)

Insulation Resistance 100Megohm Min.(at 500VDC)

Withstanding Voltage 1000V AC (1min.)

Specification

Item name	7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals
Part Number	7282-8851-30
Wire Size	18-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

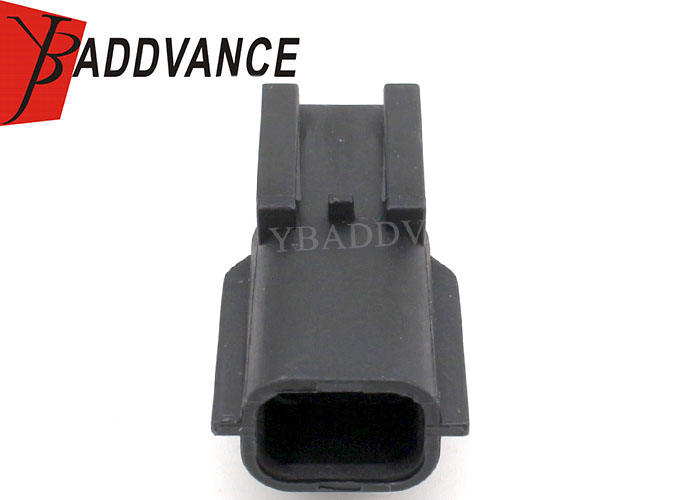

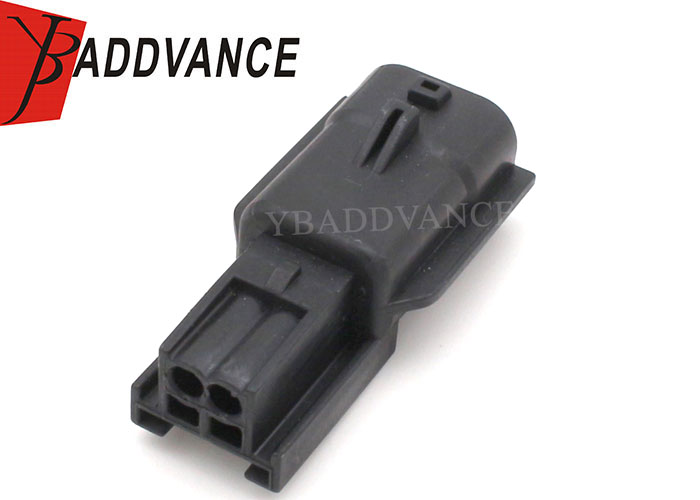

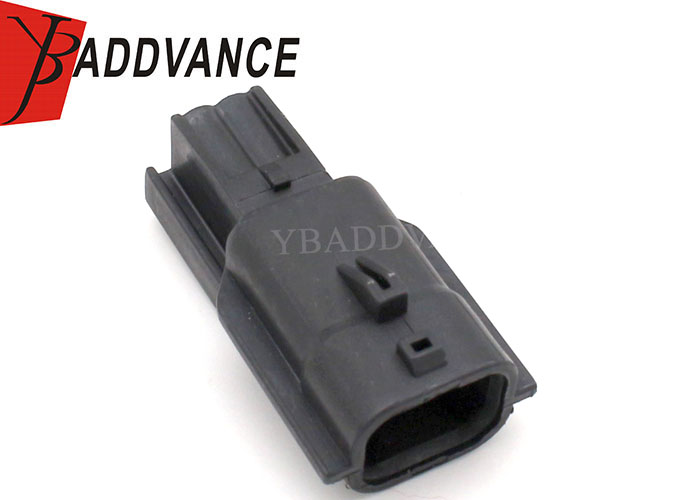

Product Picture Details

7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals
