Sealed Female 4 Pin Locking Connector For Infiniti 7283-8853-30 ISO 9001 Approved

Product Categories

Xi'An YingBao Auto Parts Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Sealed Female 4 Pin Locking Connector For Infiniti 7283885330 ISO 9001 Approved
Brand: YBADDVANCE
Price: 1 USD

Brand Name : YBADDVANCE

Model Number : 7283-8853-30

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Series : RH Connectors

Part Number : 7283-8853-30

Number of Contact : 4

Tab Width mm(inches) : 0.64(025)

Number of Way : 4 Way

Application : For Infiniti

Male Or Female : Female

Length : 23.75mm

Width : 26.12mm

High : 18.90mm

Contact Now

Sealed Female 4 Pin Locking Connector For Infiniti 7283-8853-30

Description

4 Pin female sensor connectors from YBADDVANCE supplier

Application:Fit For Infiniti,Nissan, & Others
Tire Pressure, Antenna, Headlight - Leveling Motor,HID Light, Front Camera& Others

This connector with locking,connector housing,socket contact and wire seals together.

Specification

Item name	4 Pin Locking RH connector housing
Part Number	7283-8853-30
Wire Gauge	18-22AWG
Operating Temperature range	-40℃~125℃
Connection Type	Wire to Wire Wire to Board Wire to Device
Number of Poles	4 Way
Key words	4 Pin Locking connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	Sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
Number of Rows	1 Row
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

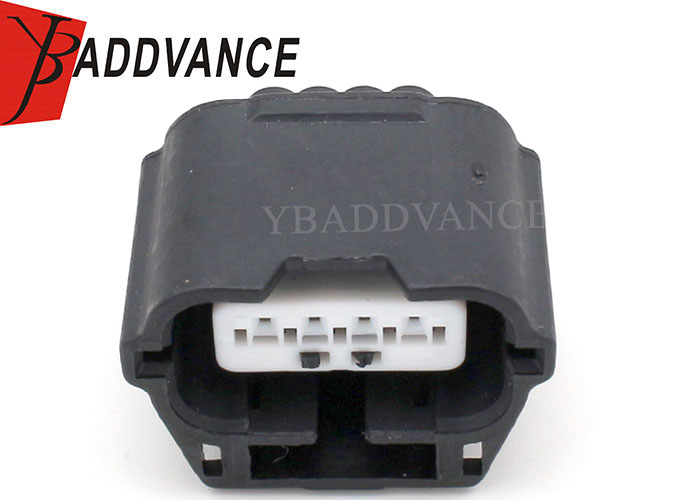

Product Picture Details

Sealed Female 4 Pin Locking Connector For Infiniti 7283-8853-30 ISO 9001 Approved
