4 Pin Female Automotive Electrical Connectors / Oxygen Sensor Connector 7283-7040-10

Name: 4 Pin Female Automotive Electrical Connectors Oxygen Sensor Connector 7283704010
Brand: YBADDVANCE
Price: 1 USD

Buy cheap 4 Pin Female Automotive Electrical Connectors / Oxygen Sensor Connector 7283-7040-10 product

Brand Name : YBADDVANCE

Model Number : 7283-7040-10

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Grey

Martial : PBT/PA66

P/N : 7283-7040-10

WARRANTY : 1 year

Type : Sealed connector

HS code : 8536909000

Way : 4 hole

Feature : Waterproof

Gender : Female

PLACE OF ORIGIN : Shaanxi,China

Contact Now

4 Pin Female Automotive YBADDVANCE Oxygen Sensor Connector 7283-7040-10

Description

Female Automotive YBADDVANCE Oxygen Sensor Connector for T oyota

Height : 30.65 mm

Width : 23.3 mm

Length: 24.5 mm

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Contact resistance :Initial 3mΩ Max.
after durability 10mΩ Max.
Leak current : 100μA Max.
Insulation resistance: 100MΩ Min.

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	4 Pin Female Automotive YBADDVANCE Oxygen Sensor Connector 7283-7040-10
P/N	7283-7040-10
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

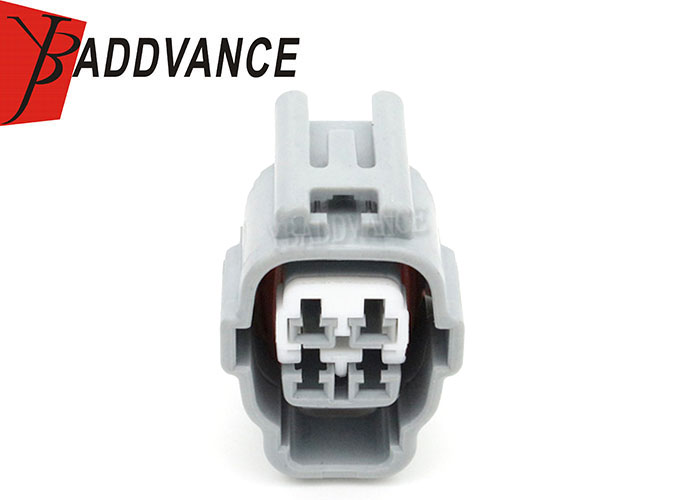

Product Picture Details

4 Pin Female Automotive Electrical Connectors / Oxygen Sensor Connector 7283-7040-10
