2 Pin Male Waterproof Grey Housing RH Connector and Terminals

Name: 2 Pin Male Waterproof Grey Housing RH Connector and Terminals
Brand: YBADDVANCE
Price: 1 USD

Buy cheap 2 Pin Male Waterproof Grey Housing RH Connector and Terminals product

Brand Name : YBADDVANCE

Model Number : BC7821

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : BC7821

Martial : PBT/PA66

Type : Sealed connector

Gender : Female

Way : 2 hole

HS code : 8536909000

Feature : Waterproof

Color : Grey

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

2 Pin Male Waterproof Grey Housing RH Connector and Terminals

Description

2 Pin Male Waterproof Grey Housing RH Connector and Terminals

Number of Positions: 2
Number of Rows: 1

Series : RH Series Connectors

A tab thickness of the male contact is 0.64mm(.025).

It included : 1 Housing connector +2 Terminals +2 Seals

Also can make wire harness with this connector If you need it

Specification

Item name	2 Pin Male Waterproof Grey Housing RH Connector and Terminals
Part Number	BC7821
Wire Size	18-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

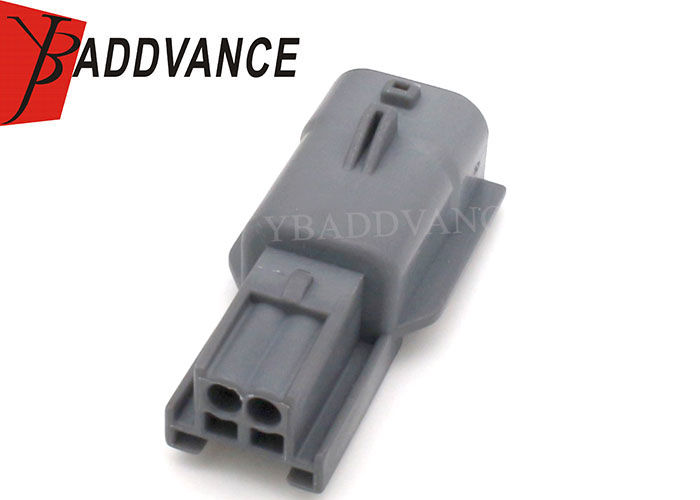

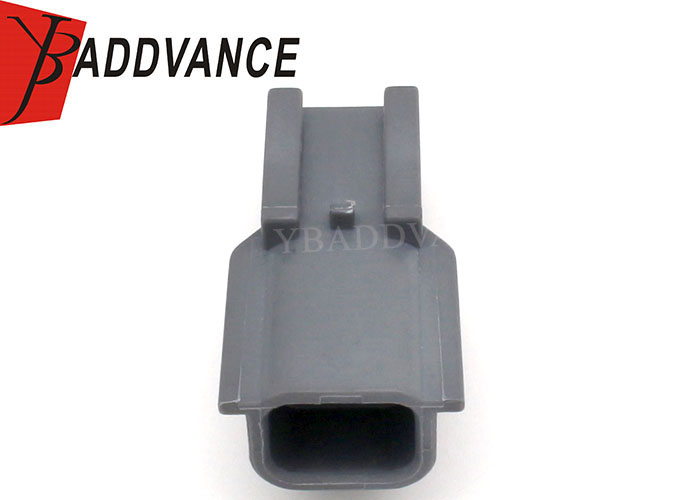

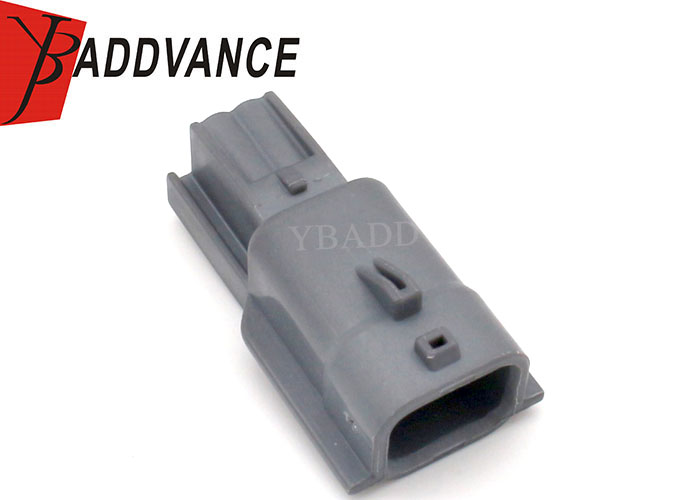

Product Picture Details

2 Pin Male Waterproof Grey Housing RH Connector and Terminals
