2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector

Name: 2 Pin Female RH 064mm 025 Bottom Slot Housing Connector
Brand: YBADDVANCE
Price: 1 USD

Buy cheap 2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector product

Brand Name : YBADDVANCE

Model Number : bc7021Y-0.6-21

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : bc7021Y-0.6-21

Martial : PBT/PA66

Type : Sealed connector

Gender : Female

Way : 2 hole

HS code : 8536909000

Feature : Waterproof

Color : Black

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector

Description

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector

Number of Positions: 2
Number of Rows: 1

Tab Width mm(inches): 0.64(025)

Series : RH Series Connectors

It included : 1 Housing connector +2 Terminals +2 Seals +1 Lock

The connector has bottom slot , please check it carefully before you purchse it

Specification

Item name	2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
Part Number	bc7021Y-0.6-21
Wire Size	18-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

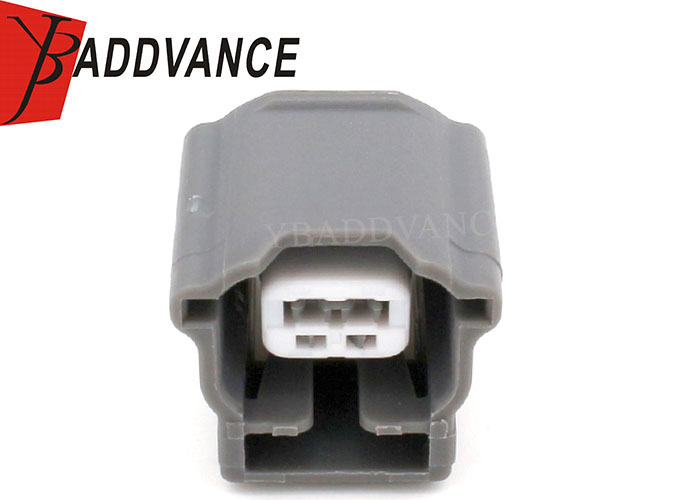

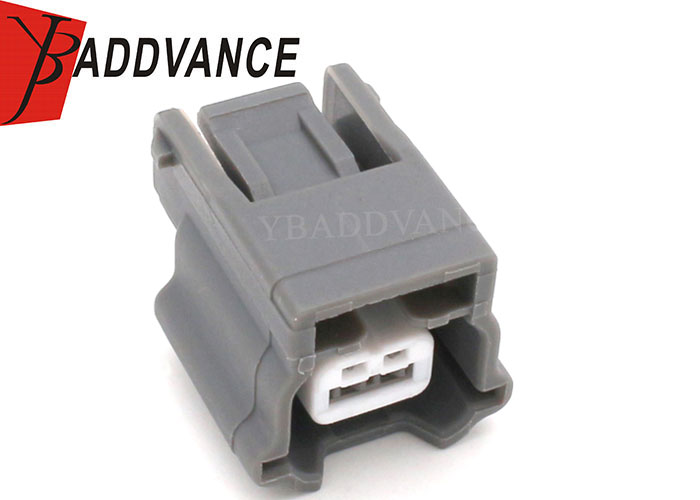

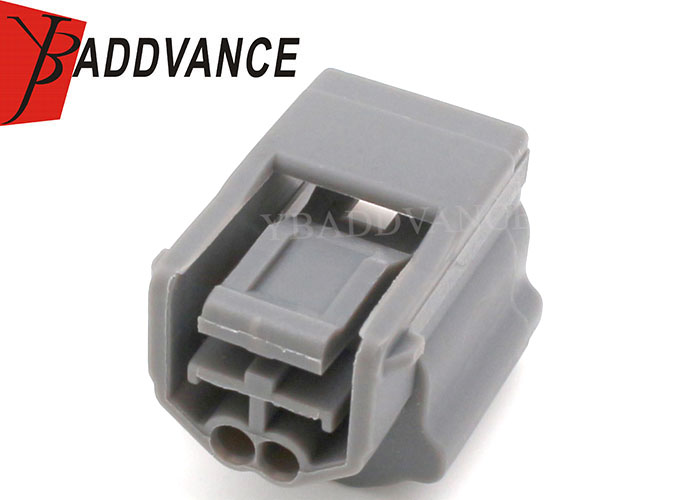

Product Picture Details

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector

Product Tags:

2 pin sealed connector

waterproof auto electrical connectors

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector Images
